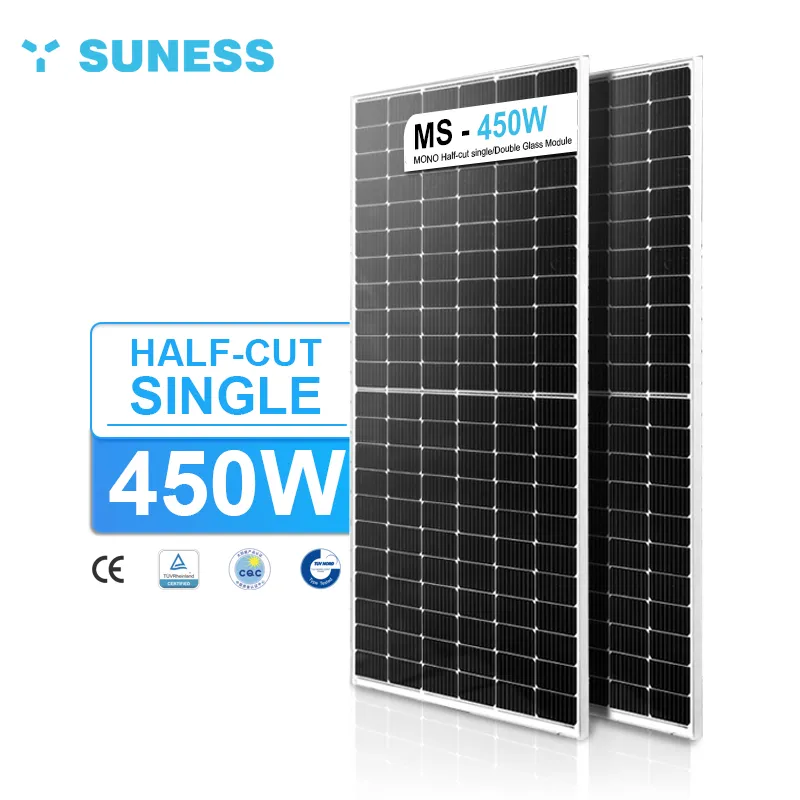

MS-450 450W|Half-cut|MONO

ModelMS-450

Cell Amoun

60*2 pcs

Junction Bo

IP68
Application LevelClass A
FrameAluminum Alloy
Cable 4mm²/300mm MC4
Dimension[W×DxH,mm]1909×1134×35
Net Weight [Kg]23.9kg


Introduction

Introduction

Mono Half-cut single/Double Glass Module

Saving logistics cost  Saving cable cost

Saving bracket cost    Saving labor cost

10-year warranty for material and technology

25-year linear power output warranty

Specification

Module TypeMS-450W
Maximum Power (Pmax/W)450
Open Circuit Voltage(VocN)41.25
Short Circuit Current(lsc/A)13.89
Maximun Power Voltage(VmpN)34.67
Maximum Power Current(lmp/A)12.98
Module Efficiency(%)20.80
Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
ELECTRICAL PARAMETERSAT NOCT
Maximum Power (Pmax/W)340
Open Circuit Voltage(VocN)38.65
Short Circuit Current(lsc/A)11.08
Maximun Power Voltage(Vmp/V)38.65
Maximum Power Current(lmp/A)11.08
Output Tolerance0~+5W
