| Model | HIP3524 |
| Rated outpot power(W) | 3500 |
| MAX. PV Charging | 500V |
| Rated battery input Voltage | 24V |
| Input voltage range | 220/230VAC |
| Application | Home |
| Dimension[W×DxH,mm] | 378×280×103 |
| Net Weight [Kg] | 7.4 |

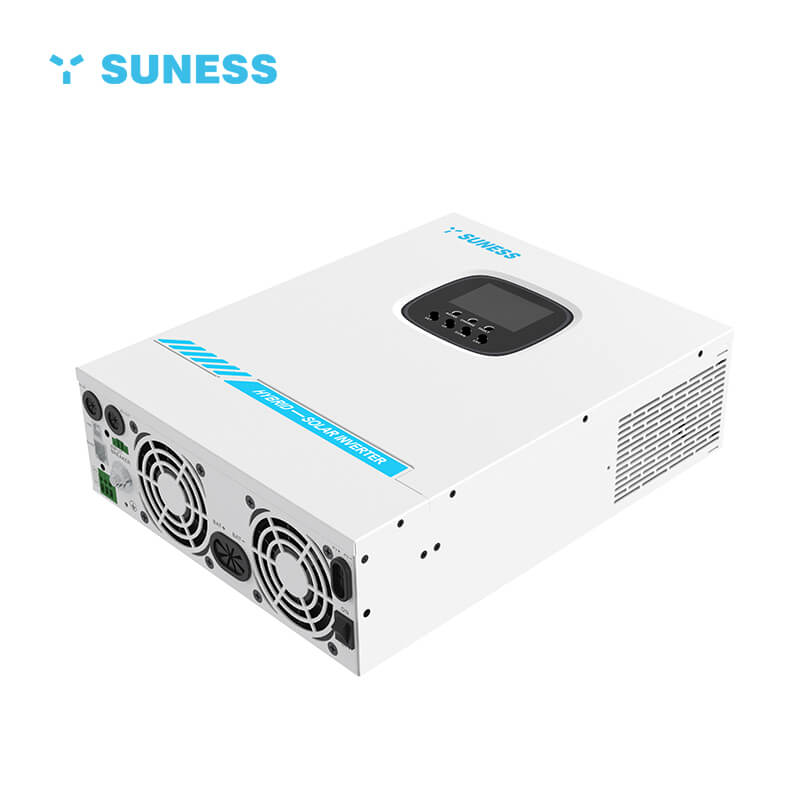

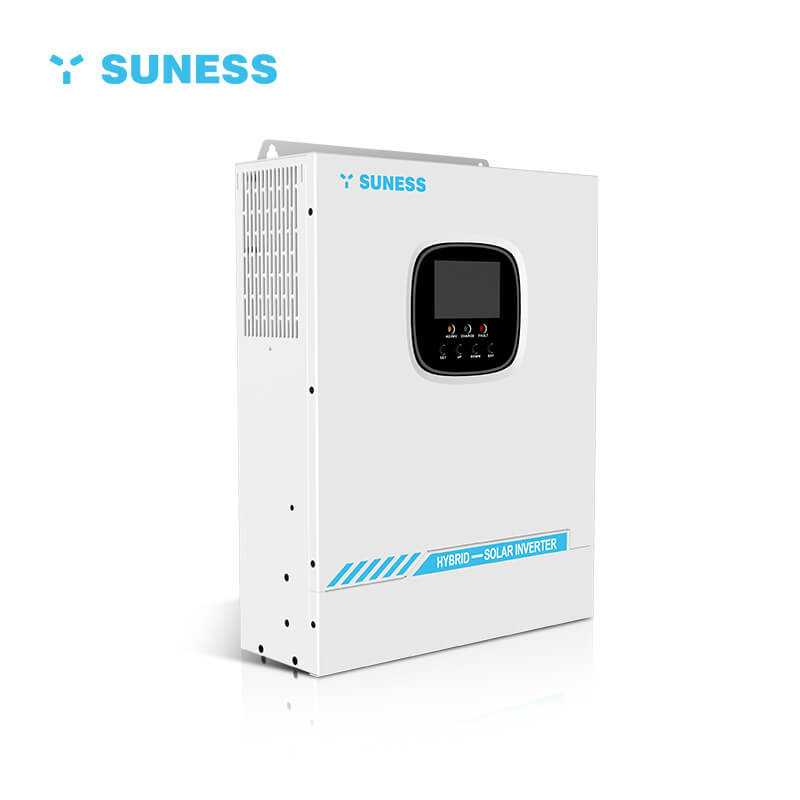

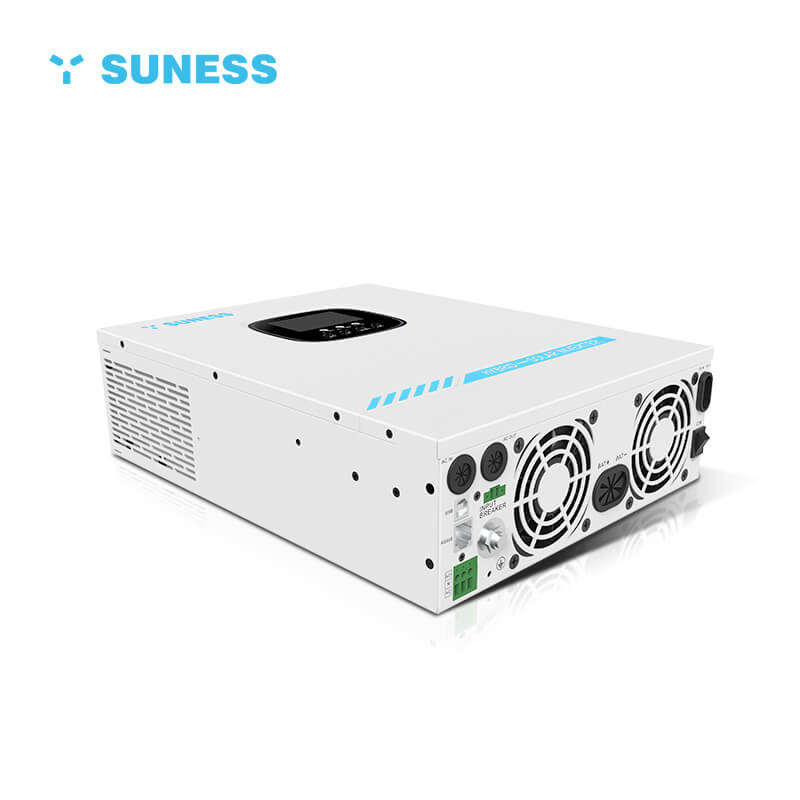

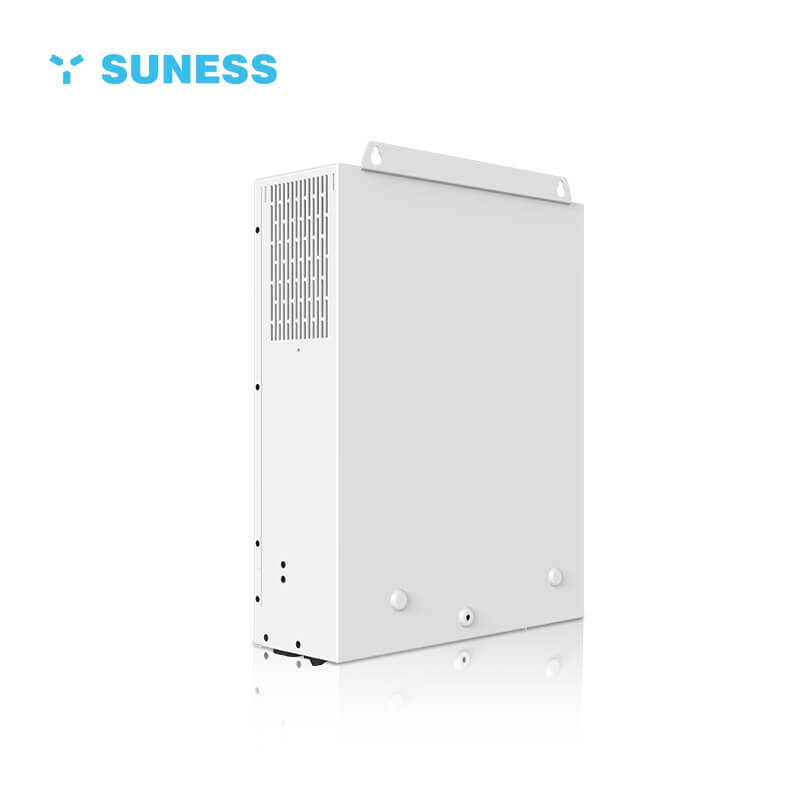

HIP Series
Pure sine wave output.
Advanced SPWM technology
Mains bypass voltage or inverter output can be selected
Provide 4 charging modes
Advanced MPPT technology, the efficiency reaches 99.9%
Design LCD screen to observe dynamic data
ON/OFF rocker switch for AC output control
Power saving mode can reduce no-load loss
Intelligent heat dissipation, prolonging the life of the system
Support lead-acid battery and lithium battery
Perfect protection, with multiple protection functions
| Models | HIP3524 |
| AC Mode | |
| Rated input voltage | 220/230Vac |
| Frequency | 50Hz/ 60Hz (Auto detection) |
| Overload/short circuit protection | Circuit breaker |
| Efficiency | >95% |
| Conversion time (bypass and inverter) | 10ms (typical) |
| AC reverse protection | Available |
| Maximum bypass overload current | 30A |
| Inverter Mode | |
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | 3500 |
| Rated output power (W) | 3500 |
| Rated output voltage (Vac) | 230Vac |
| Output voltage error | ±5% |
| Maximum Efficiency | >92% |
| Peak power | 6000VA |
| Loaded motor capability | 2HP |
| Rated battery input voltage | 24V (Minimum starting voltage 22V) |
| Power saving mode | Load ≤50W |
| AC Charging | |
| Battery type | Lead acid or lithium battery |
| Maximum charge current(can be set) | 0-80A |
| Charge current error | ± 5Adc |
| Charge voltage range | 20 –33Vdc |
| Short circuit protection | Circuit breaker and blown fuse |
| Circuit breaker specifications | 30A |
| Overcharge protection | Alarm and turn off charging after 1 minute |
| PV charging | |
| Maximum PV open circuit voltage | 500Vdc |
| PV operating voltage range | 120-500Vdc |
| MPPT voltage range | 120-450Vdc |
| Battery voltage range | 20 –33Vdc |
| Maximum input power | 4000W |
| PV charging current range (can be set) | 0-80A |
| Charging short circuit protection | Blown fuse |
| Wiring protection | Reverse polarity protection |
| Hybrid charging Max charger current specifications (AC charger+PV charger) | |
| Max charger current(can be set) | 0-80A |
| Certified specifications | |
| Certification | CE(IEC 62109-1)/FCC/SAA |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Heat dissipation | Forced air cooling, variable speed of fan |

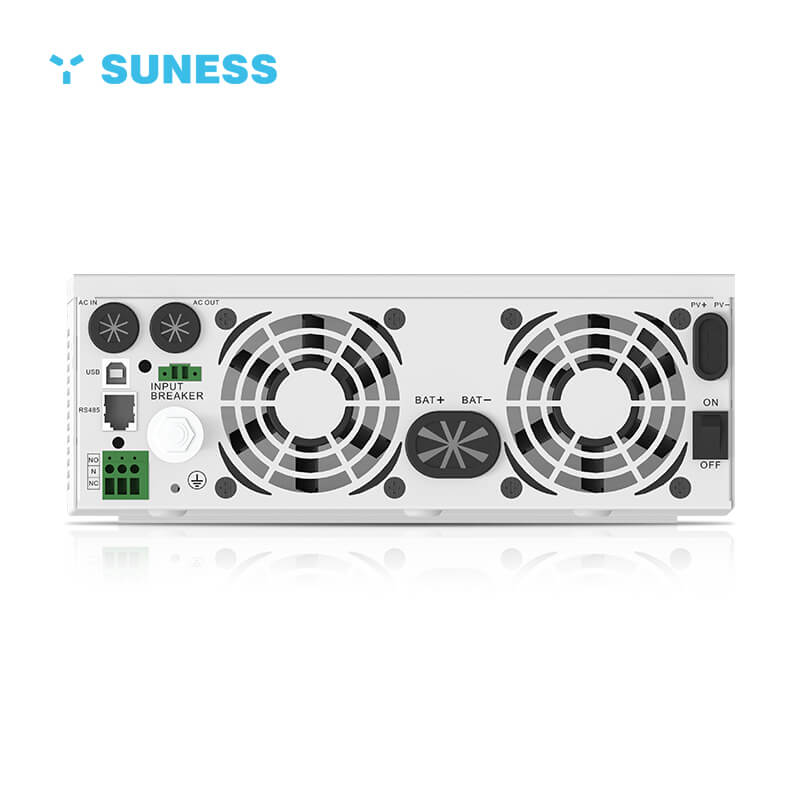

| Communication interface | USB/CAN/RS485(WiFi/GPRS)/Dry node control |
| Size (L*W*D) | 378mm*280mm*103mm |
| Weight (kg) | 7.4 |
