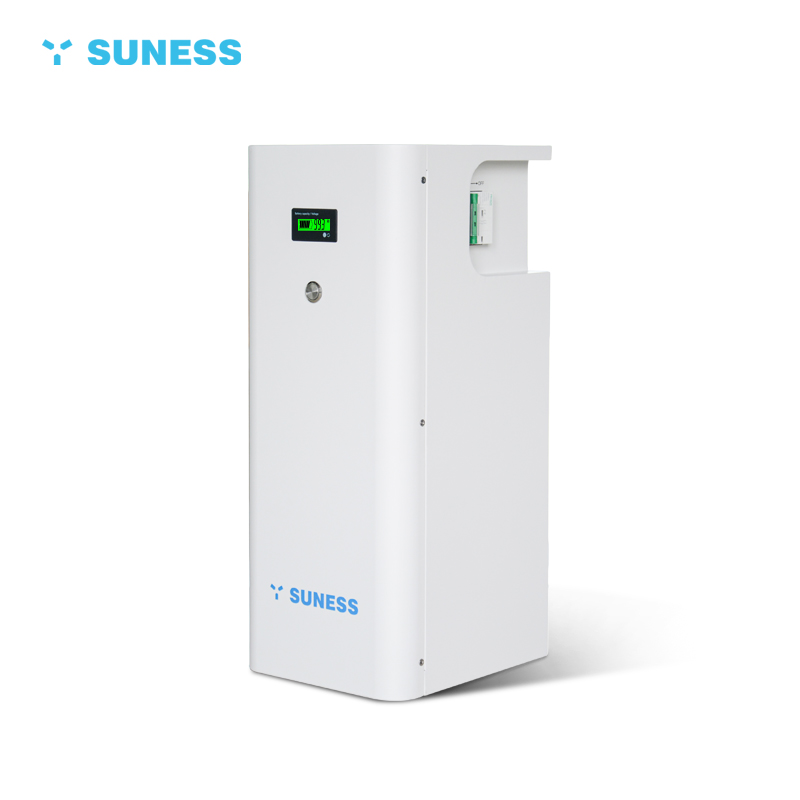

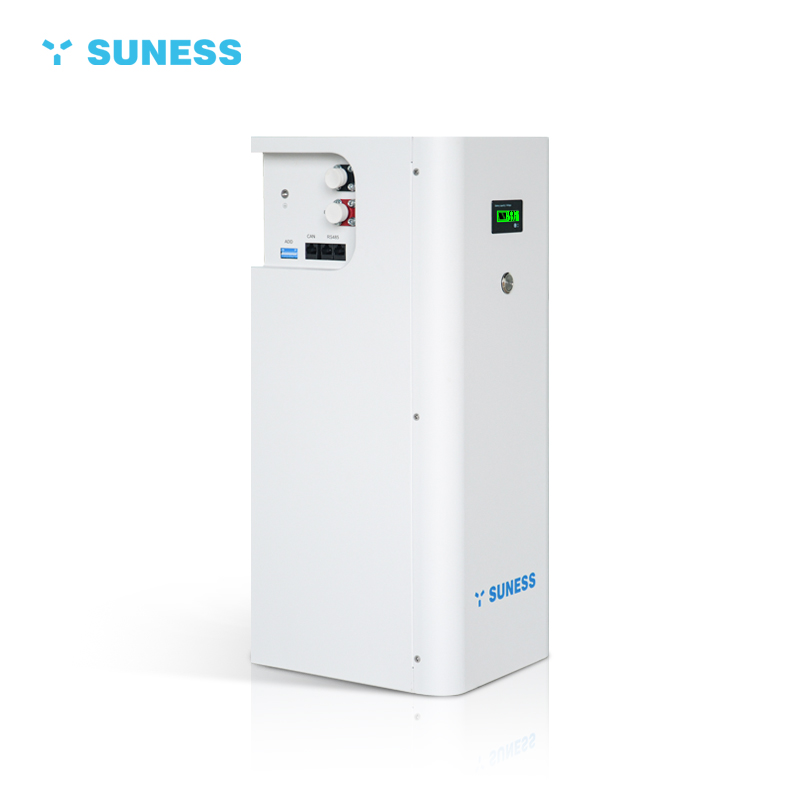

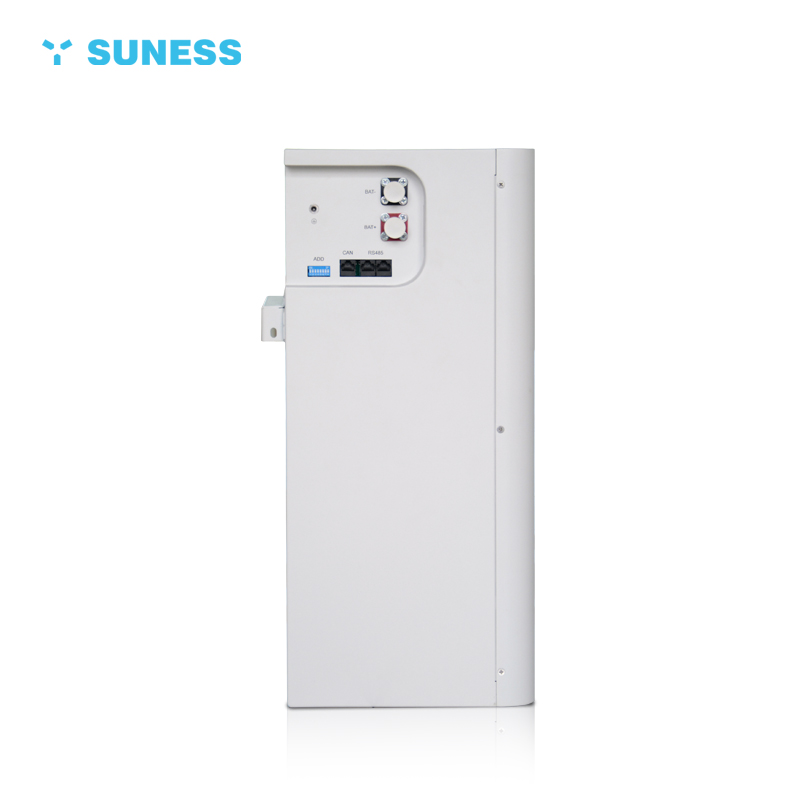

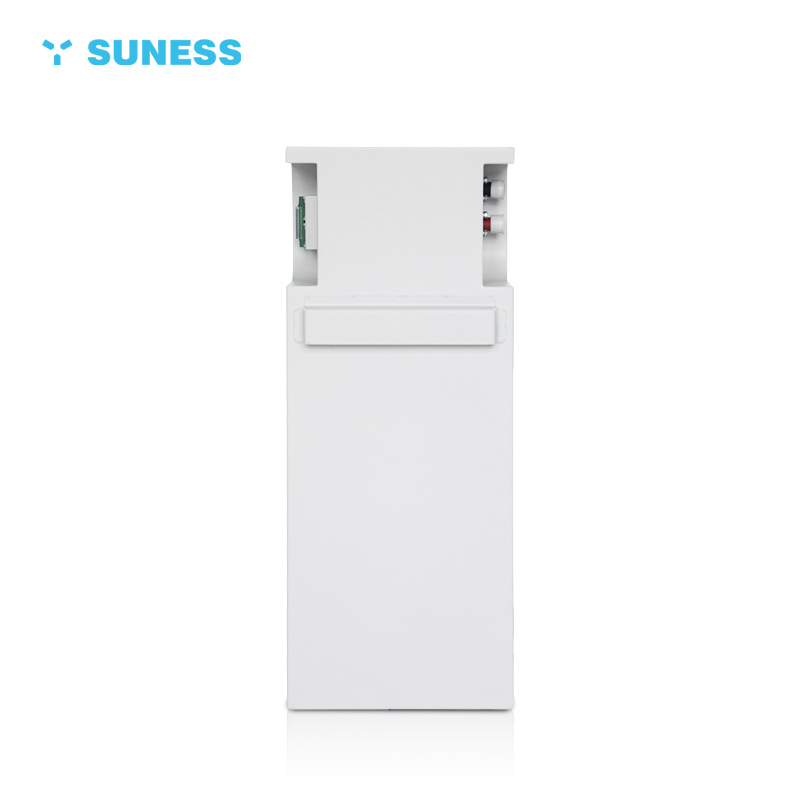

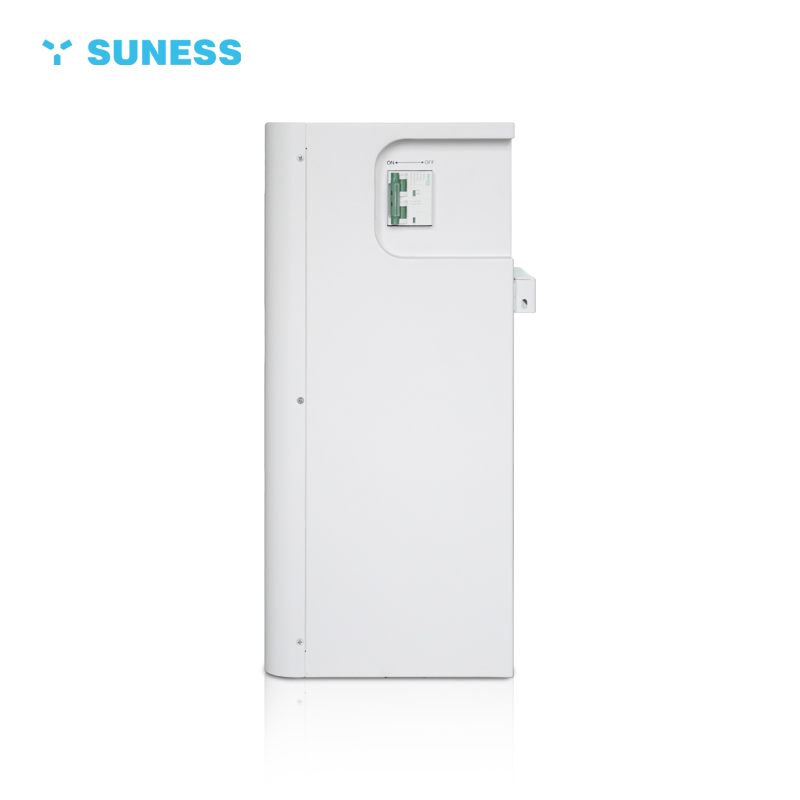

ES-5.12L lifepo4 battery pack 200ah 24V Powerwall solar battery price

Total Energy [kWh]5.12
Capacity [Ah]200
Nominal Voltage [V]25.6
Voltage Range [M]24-28.8V
MAX.Charge & Discharge
Net Weight [Kg]33.5KG



24V 200ah LiFePO4 Battery

95% DOD with More Usable Capacity

Long cycle life:More than 6000 Cycles

Compatible with most of available solar inverters

Support CAN&RS485 Communication

Equipped Smart BMS

Warranty:5 Years

Wall mounted lithium battery is mainly for home energy stoarge solutions


Total Energy [kWh] 5.1210.2415.3617.92
Capacity [Ah]200200300350
Nominal Voltage [V]25.651.251.251.2
Voltage Range [V]21-28.848-57.648-57.648-57.6
MAX. Charge & Discharge Current [A]50 80 120 150
Peak Charge & Discharge Current [A] (for 10 sec.)80 120 150 200
Dimension [W x D x H, mm]220*270*550610×160×800577*680*280721*680*280
 Net Weight [Kg]34 72 110 135
Scalable1~16 in parallel
Communicated InverterGOODWE / Victron / SOFAR / Deye / Growatt / Solis / SMA / SRNE
Enclosure Protection RatingIP21
Working Temperature Range [℃] -10 ~ 50
Cycle Life>6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL
Warranty5 years

ES-5.12L Detial

24v 200ah lifepo4 Battery is a key component of the energy storage system, which plays an important role in the development of the new energy market. With the popularity of environmental awareness and renewable energy, the new energy market is developing rapidly and the demand is increasing, so this product is very popular in the market.

The battery has the characteristics of high capacity, high performance and long life, and can provide long-lasting and stable energy supply. With 24v voltage output and 200ah current capacity, it is suitable for various new energy systems, such as solar systems, wind power systems and electric vehicle charging systems. It can meet the needs of most household, industrial and commercial users and provide them with reliable power support.

In addition to its excellent performance, this battery is also very easy to install. It adopts lightweight design and is lightweight, making it easy to carry and install. Its compact size allows it to adapt to different installation environments and space constraints. In addition, the battery also has reliable safety performance, and fire and explosion prevention and other measures can ensure the safety of users.

In short, 24v 200ah lifepo4 Battery, as a hot-selling product in the new energy market, has the advantages of high performance, long life and convenient installation. It not only meets the needs of renewable energy systems, but also provides users with stable and reliable energy supply, making a positive contribution to the development of the new energy market.

baterie 24v 200ah

lifepo4 battery 24v 200ah
