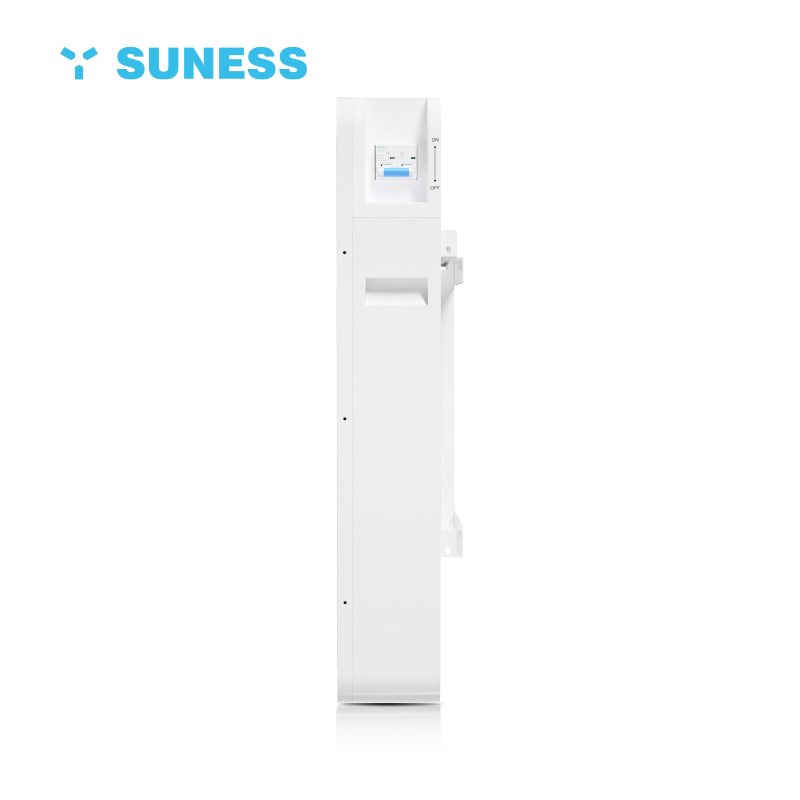

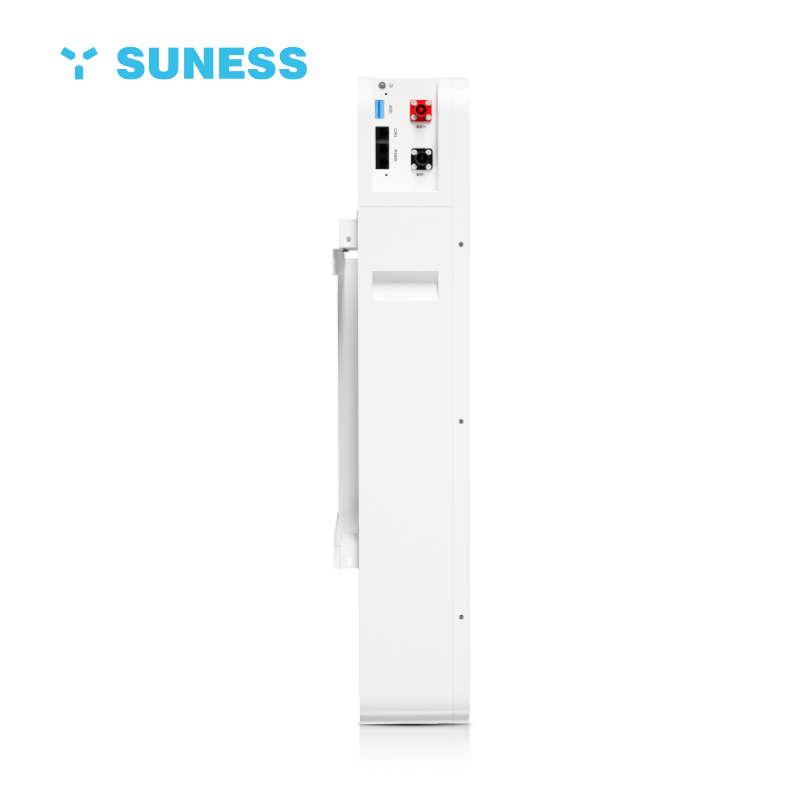

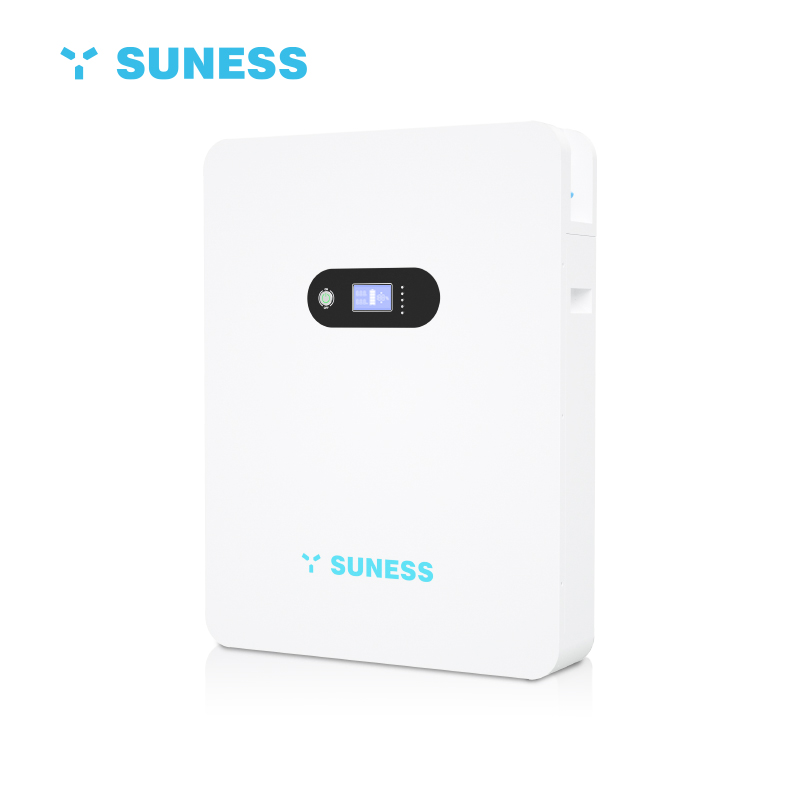

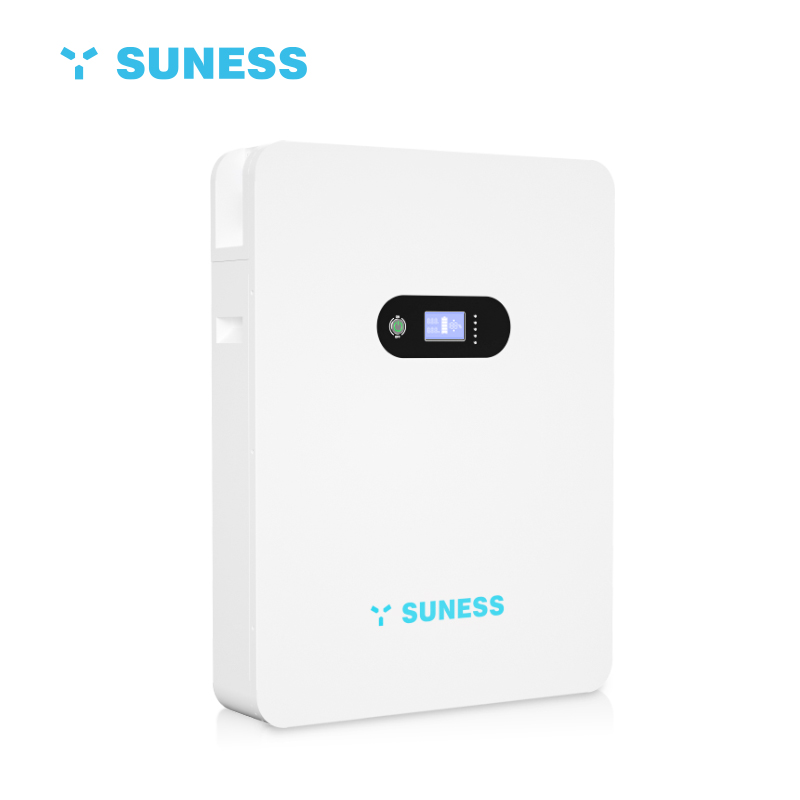

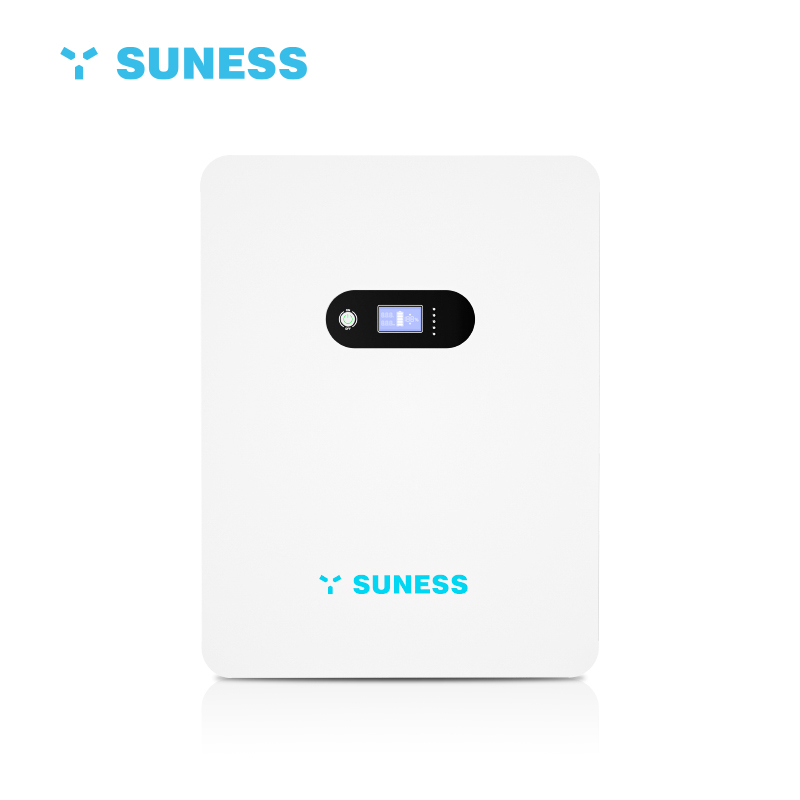

48V 150ah lifepo4 >6000 cycles lithium phosphate battery

ES-7.68L

Model	ES-7.68L
Total Energy [kWh]	7.68
Capacity [Ah]	150
Nominal Voltage [V]	51.2
Voltage Range [M]	48V-51.2
MAX.Charge & Discharge Current[A]	60
Dimension[W×DxH,mm]	430×205×665
Net Weight [Kg]	61

Specification System Features features

Introduction

48V 150ah LiFePO4 Battery
95% DOD with More Usable Capacity
>6000 cycles Reliable Performance
Compatible with most of available solar inverters
Support CAN&RS485 Communication
Wall mounted lithium battery is mainly for home energy stoarge solutions

Specification

Model	ES-5.12L	ES-7.68L	ES-10.24L	ES-15.36L	ES-17.92L
Total Energy [kWh]	5.12	7.68	10.24	15.36	17.92
Capacity [Ah]	100	150	200	300	350
Nominal Voltage [V]	51.2	51.2	51.2	51.2	51.2
Voltage Range [V]	48-57.6	48-57.6	48-57.6	48-57.6	48-57.6
MAX. Charge & Discharge Current [A]	50	60	80	120	150
Peak Charge & Discharge Current [A] (for 10 sec.)	80	100	120	150	200
Dimension [W x D x H, mm]	430×255×575	430×205×665	610×160×800	577680280	721680280
Net Weight [Kg]	58	61	72	110	135
Scalable	1~16 in parallel
Communication	CAN,RS485
Communicated Inverter	GOODWE / Victron / SOFAR / Deye / Growatt / Solis / SMA / SRNE
Enclosure Protection Rating	IP21
Working Temperature Range [℃]	-10 ~ 50
Cycle Life	＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL
Warranty	5 years
Certification	IEC62619,UN38.3,CE
